TCJY-75 Full-auto Spiral Center Tube Making Machine

1
MOQ
5000
Prijs
TCJY-75 Full-auto Spiral Center Tube Making Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Stroombron: Elektrisch
Machinetestrapport: Mits
Garantietijd: 1 jaar
Dimensie: 1600×800×1500mm (L×B×H)
Geautomatiseerd: Ja
Productoorsprong: Bengbu Anhui China
Markeren:

full-auto spiral tube making machine

,

air filter production line equipment

,

Full-auto center tube machine
Basis informatie
Plaats van herkomst: Anhui Bengbu
Merknaam: Bengbu Tongchen
Modelnummer: TCJY-75
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten kist
Levertijd: 15-45 dagen
Betalingscondities: T/T
Levering vermogen: Onbeperkt aanbod
Productomschrijving

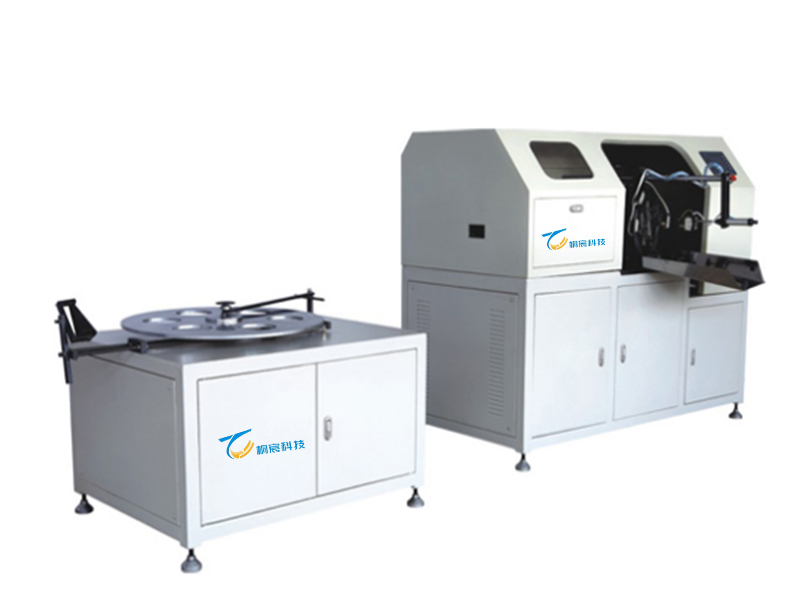

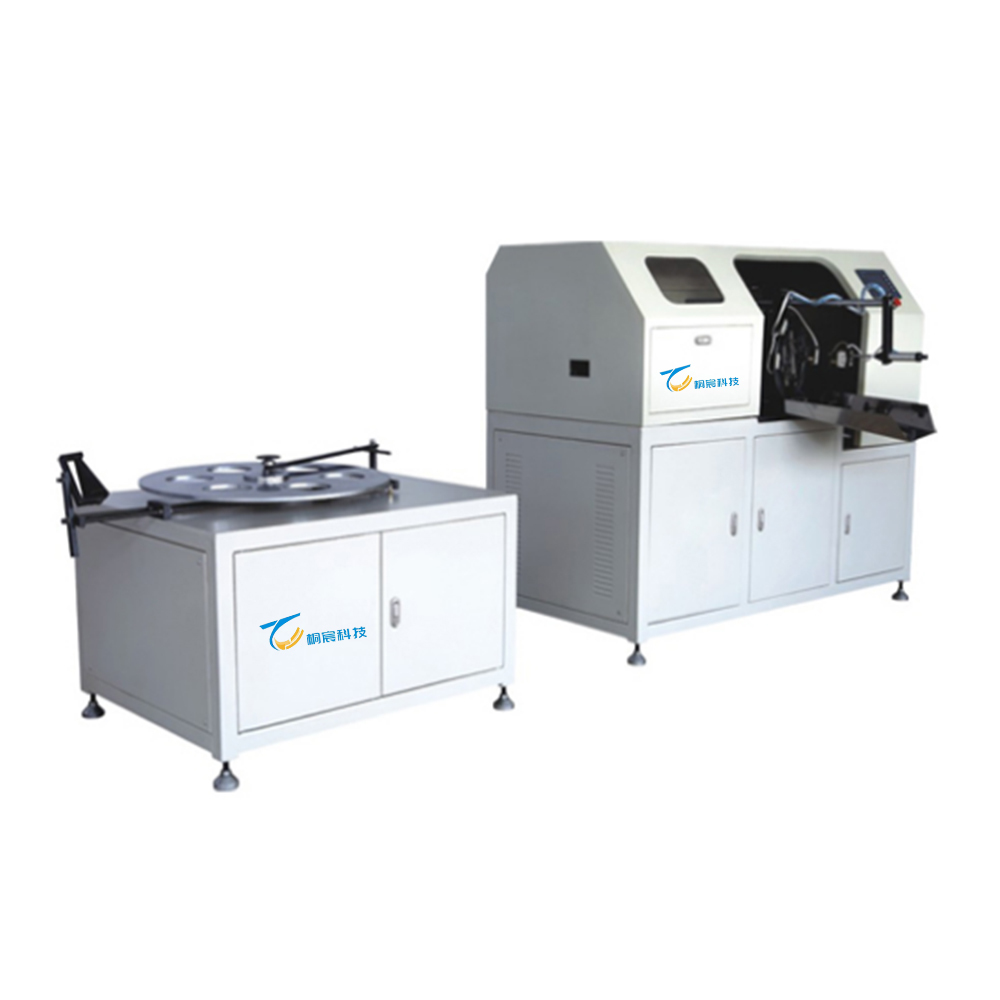

TCJY-75 Full-auto Spiral Center Tube Making Machine
Product Description
The TCJY-75 is a fully automatic spiral center tube manufacturing system designed for high-volume production. With a capacity of 20-30 pcs/min, adjustable diameters from Φ30-Φ75mm, and freely selectable tube length, this machine provides strong adaptability to different filter manufacturing needs.
Its hydraulic pressure drive offers powerful and stable performance, while computer control ensures precise processing, economical material use, and steady quality.
Product Parameters
Item Specification
Product capability 20-30 pcs/min
Diameter of the center tube Φ30-Φ75mm
Length of center tube Freely
Steel plate thickness 0.25-0.32mm
Motor power 3kW
Power supply 380V/50HZ
Working air pressure 0.6MPa
M/C weight 800KG
Size of main machine 1600×800×1500mm (L×W×H)
Size of paper de-coiler 1200×800×800mm (L×W×H)
Production Features
TCJY-75 Full-auto Spiral Center Tube Making Machine 0
  • The machine can easily change the diameter of screw tube in a short time
  • Cut the needed length according to customer specifications
  • Can adjust the clutch according to different thickness of the steel strip
  • The computer control machine saves production costs and working procedures with its high efficiency, steady quality and economical materials
  • Adopts hydraulic pressure drive, which has strong power and good stability
Production Applications
The machine is technically used in manufacturing the center tubes of the auto oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.
TCJY-75 Full-auto Spiral Center Tube Making Machine 1
