Thuis /Producten/HEPA-filter ploetmachine/Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production

Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production

1
MOQ
$5500~7500
Prijs
Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productiesnelheid (max.): 0 - 30 vellen/min
golfhoogte: 3 mm - 6 mm (aanpasbaar)
Geautomatiseerd: Ja
Garantietijd: 1 jaar
Markeren:

corrugated forming machine for aluminum foil

,

HEPA filter pleating machine for paper foil

,

special corrugated forming machine with warranty
Basis informatie
Plaats van herkomst: Anhui, China
Merknaam: TONGCHEN
Certificering: ISO
Modelnummer: TC-5710
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: HOUTEN KIST
Levertijd: 30
Betalingscondities: T/T
Levering vermogen: 15
Productomschrijving

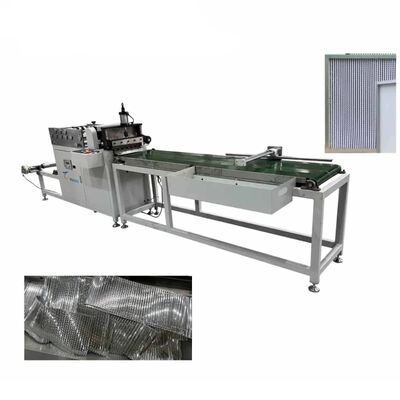

Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production
The 350mm Corrugating Machine is a state-of-the-art industrial solution designed for precision separation of aluminum foil and paper composite materials. Featuring a durable painted frame for enhanced precision and aesthetic appeal, this equipment offers an ergonomic layout that facilitates easy roll replacement, adjustment, and operation.
Complete Automated Process
Rolled aluminum foil (paper) → Coiling → Tension unwinding → Tension feeding → Flanging → Corrugation pressing (heat setting) → Automatic sizing cutting → Automatic discharge
Technical Specifications
Material Compatibility Aluminum foil (semi-hard, flat) or paper
Maximum Roll Diameter 700 mm
Maximum Material Width 320 mm
Material Thickness 0.04 ± 0.005 mm
Corrugated Edge Width After Pressing 3 mm - 10 mm
Corrugation Height 3 mm - 6 mm (customizable)
Sizing Length Freely adjustable
Production Speed (Maximum) 0 - 30 sheets/min
Power Supply 380V, 50Hz
Compressed Air Requirement 0.6 m³/min
Machine Dimensions (L × W × H) 3800 × 950 × 1395 mm
Motor Configuration Three-phase motor
Mechanical Parts Treatment Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment
Pneumatic Components Brand Jiahe brand, Harbin bearings
Instrument Installation Reasonable layout, easy to remove
Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 0
Industrial Applications
  • Production of aluminum foil corrugated separators
  • Manufacturing of paper-based separators
  • Industrial packaging materials
  • Electronics and battery separator sheets
  • Custom corrugated sheets for industrial applications

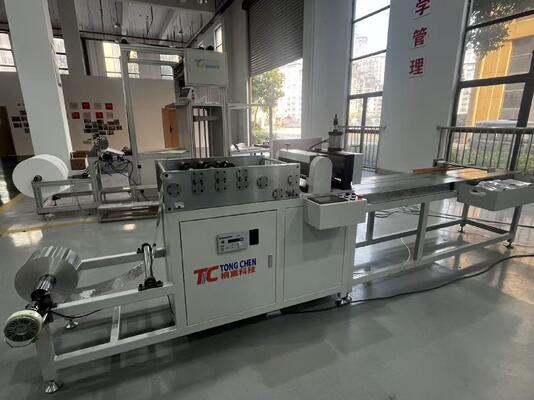

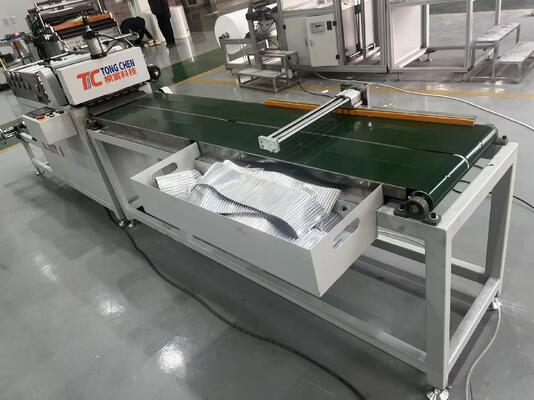

Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 1 Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 2
Key Advantages
  • High production efficiency (up to 30 sheets/min)
  • Fully customizable corrugation height (3-6mm) and sheet length
  • Stable production due to tension-controlled feeding
  • Ergonomic design improves operator comfort and safety
  • Easy maintenance with accessible and replaceable components
  • Suitable for both aluminum foil and paper materials
  • Painted frame ensures durability and precision alignment
Packaging & Delivery
Selling Units: Single item
Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 3
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is strategically located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of advanced filter manufacturing equipment, providing practical and efficient solutions that meet both domestic industry trends and international quality standards.
Product Range
  • Paper folding equipment and rotating machines
  • Diesel engines and large air filter production equipment
  • Partitionless and partitioned filter production equipment
  • Pleating machines and glass fiber strip production lines
Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 4 Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 5 Filter Element Special Corrugated Forming Machine for Aluminum Foil and Paper Foil Production 6
